📃 Overview

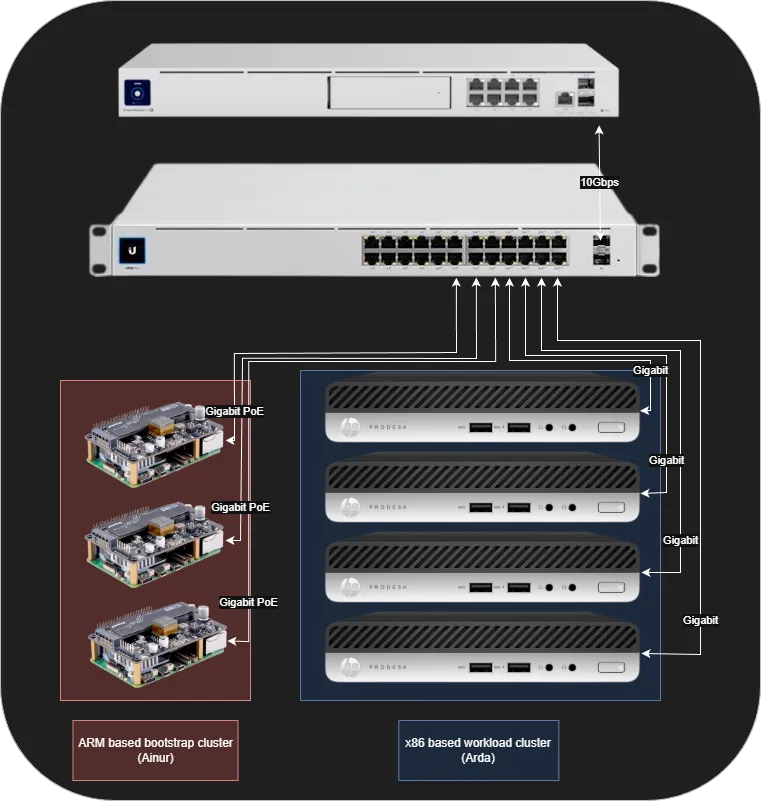

An attempt to illustrate…

The idea for this project is to build a set of clusters that are completely source controlled and can be reproduced via automation where possible.

Infrastructure & Naming Conventions

I’ve used Greek, Hindu and Norse naming conventions in the past so this time I opted for a different kind of mythos The naming theme leans on Tolkien: Ilúvatar creates the world, the Ainur shape it, and everyone else keeps the music going.

Ilúvatar (Project)

The Git repository is the single source of truth for infrastructure, Talos/Kubernetes manifests, and bootstrap automation. Every environment derives from this definition.

Eä (Environment / Network)

“The World That Is” covers physical racks, VLANs, DNS zones, DHCP, and the rest of the homelab plumbing that hosts both clusters.

Ainur (Bootstrap Cluster)

A Raspberry Pi cluster providing dnsmasq, TFTP, HTTP artefact hosting, Git mirrors, and the Argo CD seed. Without the Ainur, nothing else comes online.

• Valar (Bootstrap Primary Nodes)

  Primary Pis responsible for keeping PXE, Git, and Argo CD seed services available. They are the first stop for any new hardware joining the network.

• Maiar (Bootstrap Secondary Nodes)

  Supporting Pis that add resilience, host auxiliary services, or soak up background tasks so the Valar can focus on bootstrap duties.

See More

Arda (Main Cluster)

The Talos-powered x86 fleet that actually runs workloads. Once Talos nodes join Arda, Kubernetes schedules everything from GitOps controllers to long-term services here.

• Valinor (Control Plane Nodes)

  Talos control-plane machines maintaining etcd, the Kubernetes API server, and cluster-wide reconciliation loops.

• Istari (Worker Nodes)

  General-purpose Talos workers that run application workloads, persistent storage, and the majority of day-to-day services.

See More
